SMA5101 Datasheet - Sanken electric

SMA5101 N-channel General purpose

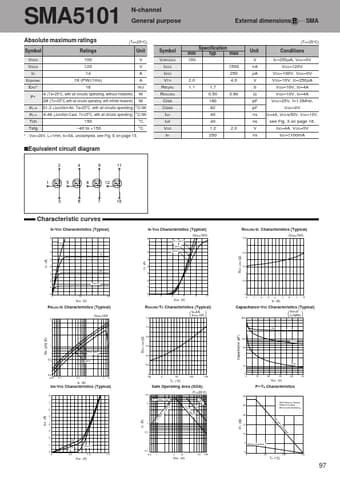

SMA5101 Absolute maximum ratings Symbol VDSS VGSS ID ID(pulse) EAS PT Ratings 100 ±20 ±4 ±8 (PW≤1ms) 16 N-channel General purpose (Ta=25°C) External dimensions B SMA (Ta=25°C) Unit V V A A mJ W W °C/W °C/W °C °C Symbol V(BR)DSS IGSS IDSS VTH Re(yfs) RDS(ON) Ciss Coss ton toff VSD trr θ j a θ j c Tch Tstg 4 (Ta=25°C, with all circuits operating, without heatsink) 28 (Tc=25°C,with all circuits operating, with infinite heatsink) 31.2 (Juncti.
