LTR-X221A Optical Sensor

📥 Download Datasheet  Datasheet Preview Page 1

Description

Optical Sensor Product Data Sheet LTR-X221A Spec No.:DS86-2022-0014 Effective Date: 09/27/2022 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-O.
The LTR-X221A is a low power digital ambient light sensor (ALS) that measures the intensity of ambient light.

📥 Download Datasheet

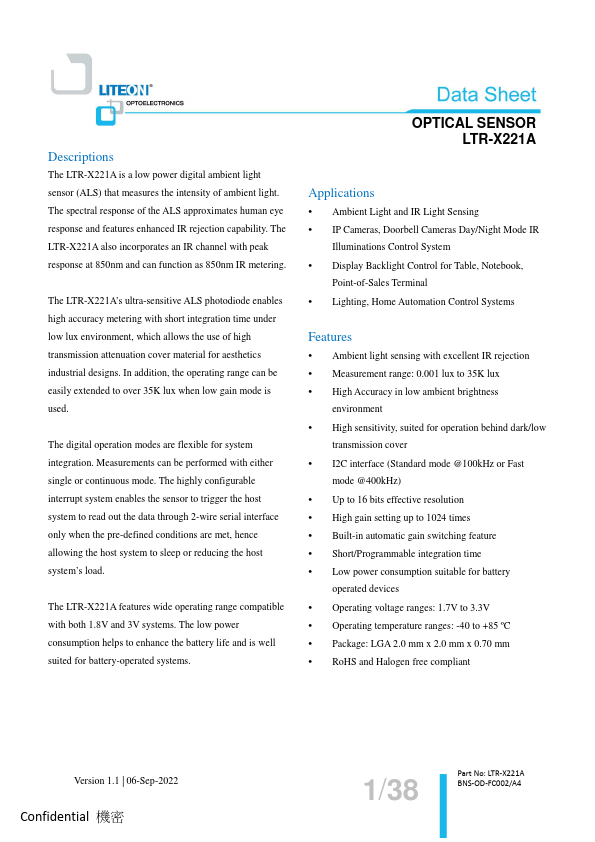

Preview of LTR-X221A PDF

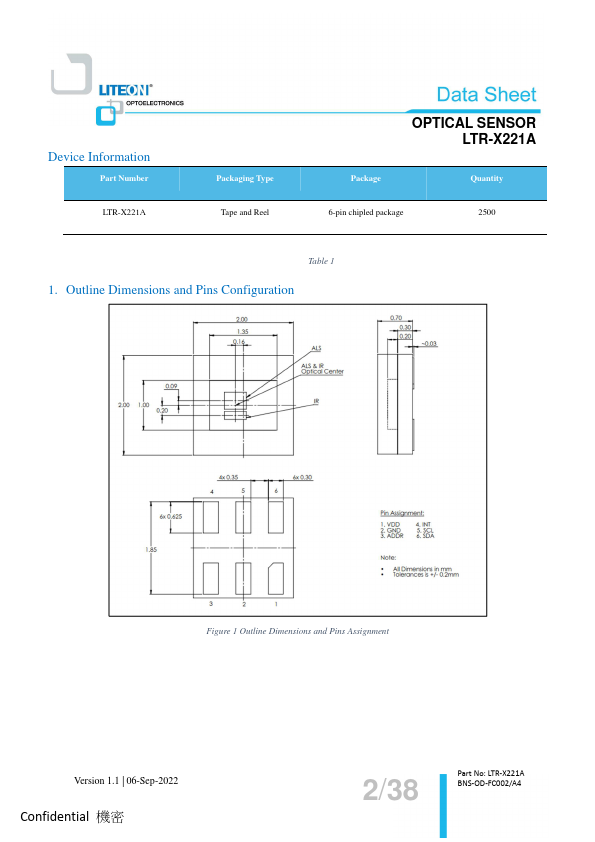

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTR-X221A
Manufacturer
LITEON
File Size
0.99 MB
Datasheet
LTR-X221A-LITEON.pdf
Description
Optical Sensor

Features

* enhanced IR rejection capability. The LTR-X221A also incorporates an IR channel with peak response at 850nm and can function as 850nm IR metering. The LTR-X221A’s ultra-sensitive ALS photodiode enables high accuracy metering with short integration time under low lux environment, which allows the use

Applications

* Ambient Light and IR Light Sensing
* IP Cameras, Doorbell Cameras Day/Night Mode IR Illuminations Control System
* Display Backlight Control for Table, Notebook, Point-of-Sales Terminal
