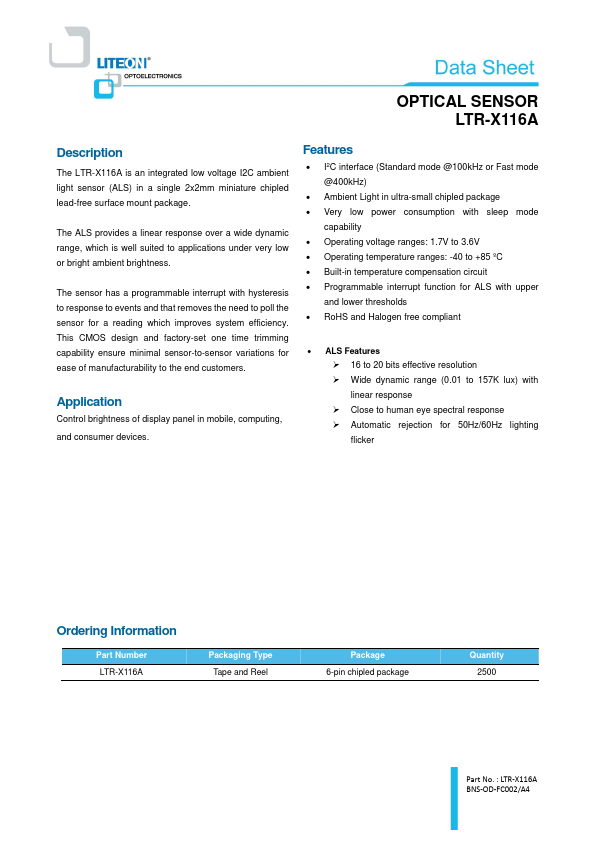

LTR-X116A Description

Optical Sensor Product Data Sheet LTR-X116A Spec No.:DS86-2018-0037 Effective Date: 12/21/2018 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-O.
The LTR-X116A is an integrated low voltage I2C ambient light sensor (ALS) in a single 2x2mm miniature chipled lead-free surface mount package.

LTR-X116A Features

* I2C interface (Standard mode @100kHz or Fast mode @400kHz)
* Ambient Light in ultra-small chipled package
* Very low power consumption with sleep mode capability
* Operating voltage ranges: 1.7V to 3.6V
* Operating temperature ranges: -40 to +85 ºC

LTR-X116A Applications

* under very low or bright ambient brightness. The sensor has a programmable interrupt with hysteresis to response to events and that removes the need to poll the sensor for a reading which improves system efficiency. This CMOS design and factory-set one time trimming capability ensure minimal sensor-

📥 Download Datasheet

LTR-X116A Datasheet Preview — Preview of LTR-X116A PDF

Datasheet Details

Part number: LTR-X116A
Manufacturer: LITEON
File Size: 882.61 KB
Datasheet: LTR-X116A-LITEON.pdf
Description: Optical Sensor
