LTW-42NDH8J1H229 Through Hole Lamp

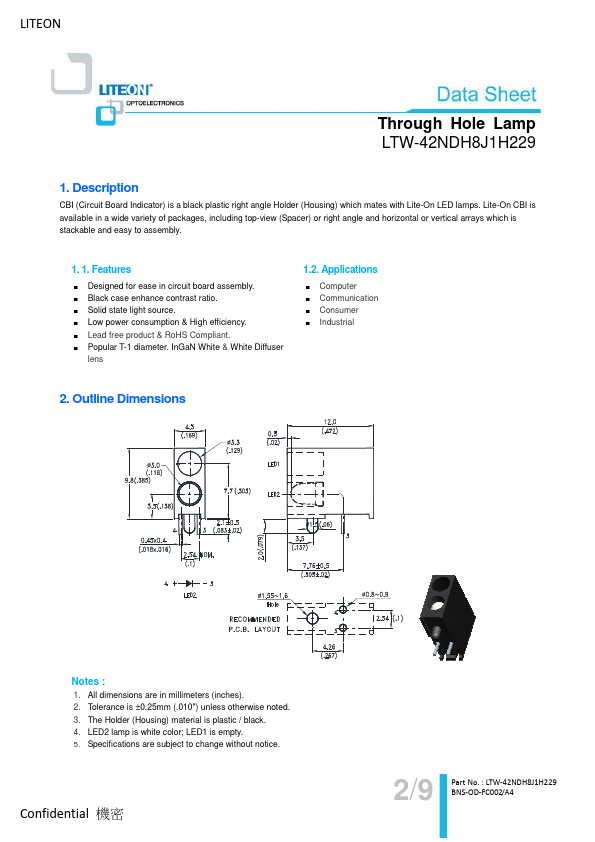

📥 Download Datasheet  Datasheet Preview Page 1

Description

Through Hole Lamp Product Data Sheet LTW-42NDH8J1H229 Spec No.:DS20-2016-0084 Effective Date: 11/01/2022 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001.
P001 P002 Preliminary Specification (RDR-20160716-01 ) Bin table correction By Javy H.

📥 Download Datasheet

Preview of LTW-42NDH8J1H229 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTW-42NDH8J1H229
Manufacturer
LITEON
File Size
422.64 KB
Datasheet
LTW-42NDH8J1H229-LITEON.pdf
Description
Through Hole Lamp

Features

* Designed for ease in circuit board assembly.
* Black case enhance contrast ratio.
* Solid state light source.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.

Applications

* Computer
* Communication
* Consumer
* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. LED2 lamp is white color; LED1 is empty. 5
