L2330 - Coordinate Transformer

Datasheet Summary

Description

The L2330 is a coordinate transformer that converts bidirectionally between Rectangular and Polar coordinates.

When in Rectangular-to-Polar mode, the L2330 is able to retrieve phase and magnitude information or backward map from a rectangular raster display to a radial data set.

Features

  • u Rectangular-to-Polar or Polar-toRectangular at 50 MHz u Performs Direct Digital Synthesis (DDS) functions along with PM and FM Modulation u 24-Bit Polar Phase Angle Accuracy u Replaces Fairchild TMC2330A u 120-pin PQFP L2330 BLOCK.

📥 Download Datasheet

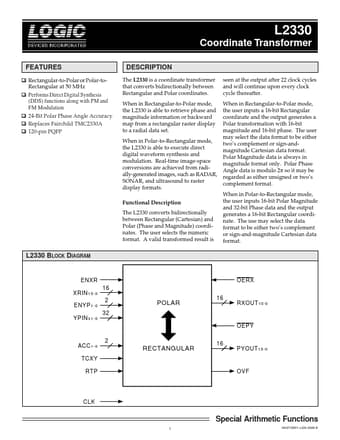

Datasheet preview – L2330

Datasheet Details

Part number L2330
Manufacturer LOGIC Devices Incorporated
File Size 295.10 KB
Description Coordinate Transformer
Datasheet download datasheet L2330 Datasheet
Additional preview pages of the L2330 datasheet.

📁 Similar Datasheet

  • L2337 - DC to AC Inverter (ERG)
  • L2310 - N-Channel 100V MOSFET (VBsemi)
  • L2320A - COLOR MONITOR SERVICE MANUAL (LG)
  • L2355 - Current Mode PWM Controller (LIZE)
  • L2358 - Current Mode PWM Controller (LIZE)
  • L2359 - Current Mode PWM Controller (LIZE)
  • L236 - Common Cathode Fast Recovery Epitaxial Diode (FRED) (IXYS Corporation)
  • L2388 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
  • L2388-01 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
  • L239 - Fast Recovery Epitaxial Diode (FRED) (ETC)
Other Datasheets by LOGIC Devices Incorporated
  • L2340 - Digital Synthesizer

Full PDF Text Transcription

Click to expand full text
L2330 DEVICES INCORPORATED Coordinate Transformer L2330 DEVICES INCORPORATED Coordinate Transformer DESCRIPTION The L2330 is a coordinate transformer that converts bidirectionally between Rectangular and Polar coordinates. When in Rectangular-to-Polar mode, the L2330 is able to retrieve phase and magnitude information or backward map from a rectangular raster display to a radial data set. When in Polar-to-Rectangular mode, the L2330 is able to execute direct digital waveform synthesis and modulation. Real-time image-space conversions are achieved from radially-generated images, such as RADAR, SONAR, and ultrasound to raster display formats. Functional Description The L2330 converts bidirectionally between Rectangular (Cartesian) and Polar (Phase and Magnitude) coordinates.
