L2330QC20 Datasheet - LOGIC Devices Incorporated

Coordinate Transformer

L2330QC20 Features

* u Rectangular-to-Polar or Polar-toRectangular at 50 MHz u Performs Direct Digital Synthesis (DDS) functions along with PM and FM Modulation u 24-Bit Polar Phase Angle Accuracy u Replaces Fairchild TMC2330A u 120-pin PQFP L2330 BLOCK DIAGRAM ENXR XRIN 15-0 ENYP 1-0 YPIN 31-0 16 2 32 16 OERX POLAR

L2330QC20 General Description

The L2330 is a coordinate transformer that converts bidirectionally between Rectangular and Polar coordinates. When in Rectangular-to-Polar mode, the L2330 is able to retrieve phase and magnitude information or backward map from a rectangular raster display to a radial data set. When in Polar-to-Rec.

L2330QC20 Datasheet (295.10 KB)

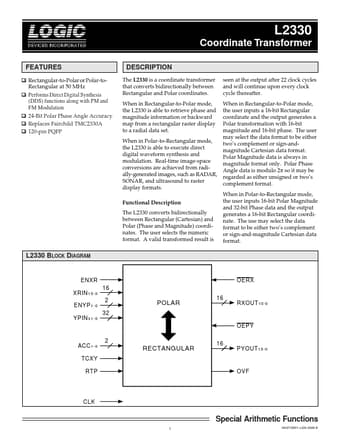

L2330QC20 Datasheet Preview — Preview of L2330QC20 PDF

Datasheet Details

Part number:

L2330QC20

Manufacturer:

LOGIC Devices Incorporated

File Size:

295.10 KB

Description:

Coordinate transformer.
