L2310 - N-Channel 100V MOSFET

Datasheet Summary

Features

  • Trench Power.

📥 Download Datasheet

Datasheet preview – L2310

Datasheet Details

Part number L2310
Manufacturer VBsemi
File Size 250.28 KB
Description N-Channel 100V MOSFET
Datasheet download datasheet L2310 Datasheet
Additional preview pages of the L2310 datasheet.

📁 Similar Datasheet

  • L2320A - COLOR MONITOR SERVICE MANUAL (LG)
  • L2330 - Coordinate Transformer (LOGIC Devices Incorporated)
  • L2337 - DC to AC Inverter (ERG)
  • L2340 - Digital Synthesizer (LOGIC Devices Incorporated)
  • L2355 - Current Mode PWM Controller (LIZE)
  • L2358 - Current Mode PWM Controller (LIZE)
  • L2359 - Current Mode PWM Controller (LIZE)
  • L236 - Common Cathode Fast Recovery Epitaxial Diode (FRED) (IXYS Corporation)
  • L2388 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
  • L2388-01 - TO-46 style GaAs infrared LED (Hamamatsu Corporation)
Other Datasheets by VBsemi

    Full PDF Text Transcription

    Click to expand full text

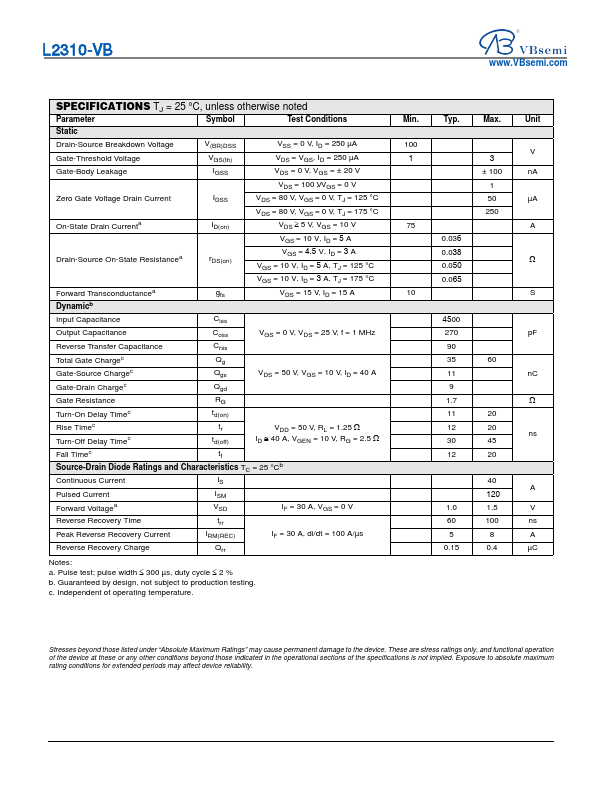

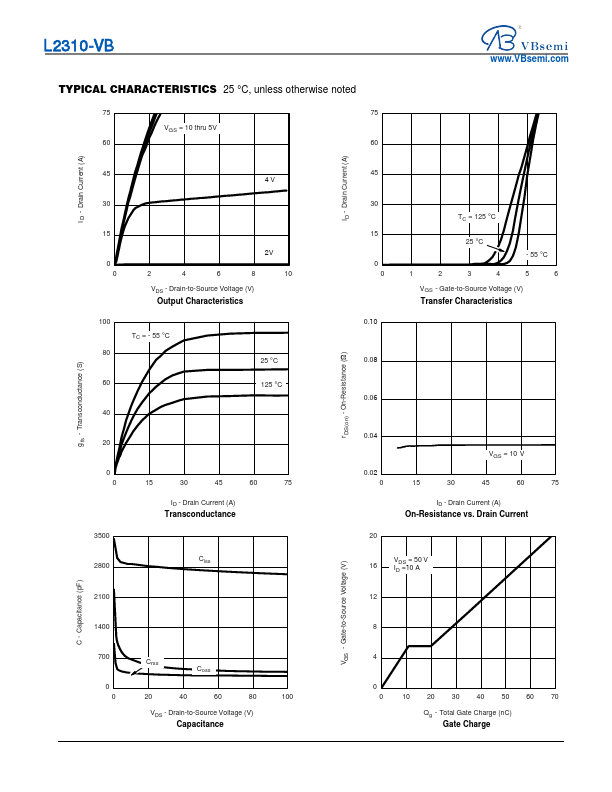

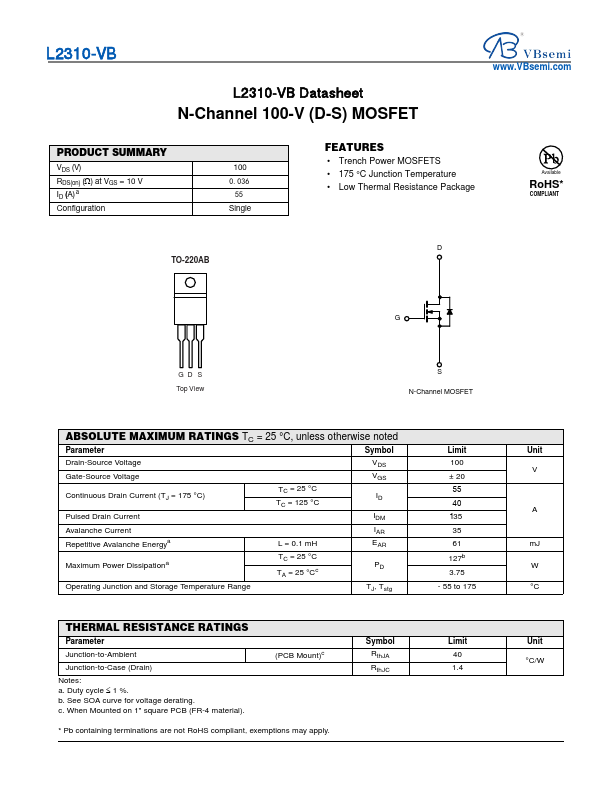

    L2310-VB L2310-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V ID (A) a Configuration 100 0.036 55 Single FEATURES • Trench Power MOSFETS • 175 °C Junction Temperature • Low Thermal Resistance Package Available RoHS* COMPLIANT D TO-220AB G GD S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanche Current IAR Repetitive Avalanche Energya L = 0.
