L2340 Datasheet - LOGIC Devices Incorporated

Digital Synthesizer

L2340 Features

* u Digital Waveform Synthesis at 50 MHz u 24-Bit Polar Phase Angle Accuracy u User-selectable Waveform Synthesis, Frequency Modulation, or Phase Modulation. u Amplitude Input for Amplitude Modulation and Gain Adjustment. u Replaces TRW/Raytheon/Fairchild TMC2340A u 120-pin PQFP L2340 BLOCK DIAGRAM

L2340 General Description

The L2340 is a digital synthesizer that performs waveform synthesis, modulation, and demodulation. The L2340 automatically generates quadrature matched pairs of 16-bit sine and cosine waves in DACcompatible 16-bit offset binary format with15-bit amplitude and 32-bit phase inputs. Output waveforms ca.

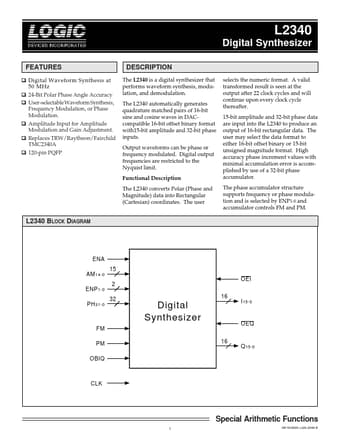

L2340 Datasheet (268.63 KB)

Preview of L2340 PDF

Datasheet Details

Part number:

L2340

Manufacturer:

LOGIC Devices Incorporated

File Size:

268.63 KB

Description:

Digital synthesizer.
