L74VHC1GT00 Datasheet - LRC

L74VHC1GT00 2-Input NAND Gate / CMOS Logic Level Shifter

LESHAN RADIO COMPANY, LTD. 2 Input NAND Gate / CMOS Logic Level Shifter with LSTTL Compatible Inputs L74VHC1GT00 The L74VHC1GT00 is a single gate 2 input NAND fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The device input i.

L74VHC1GT00_LRC.pdf

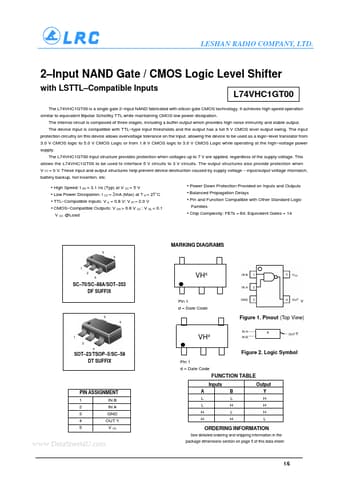

Preview of L74VHC1GT00 PDF
L74VHC1GT00 Datasheet Preview Page 2 L74VHC1GT00 Datasheet Preview Page 3

Datasheet Details

Part number:

L74VHC1GT00

Manufacturer:

LRC

File Size:

220.79 KB

Description:

2-input nand gate / cmos logic level shifter.
