L74VHC1GT05 Datasheet - LRC

L74VHC1GT05 Inverter with Open DrainOutput

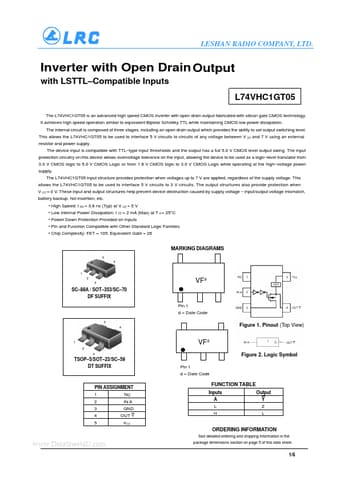

LESHAN RADIO COMPANY, LTD. Inverter with Open Drain Output with LSTTL Compatible Inputs L74VHC1GT05 The L74VHC1GT05 is an advanced high speed CMOS inverter with open drain output fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including an open drain output which provides the ability to set output switching level. This .

L74VHC1GT05_LRC.pdf

Preview of L74VHC1GT05 PDF
L74VHC1GT05 Datasheet Preview Page 2 L74VHC1GT05 Datasheet Preview Page 3

Datasheet Details

Part number:

L74VHC1GT05

Manufacturer:

LRC

File Size:

213.87 KB

Description:

Inverter with open drainoutput.
