L74VHC1GT03 2-Input NOR Gate with Open Drain Output

LESHAN RADIO COMPANY, LTD. 2 Input NOR Gate with Open Drain Output with LSTTL Compatible Inputs L74VHC1GT03 The L74VHC1GT03 is an advanced high speed CMOS 2 input NOR gate with an open drain output fabricated with silicon gate CMOS technology. It achieves high speed peration similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including an open drain output which provides the ability to.

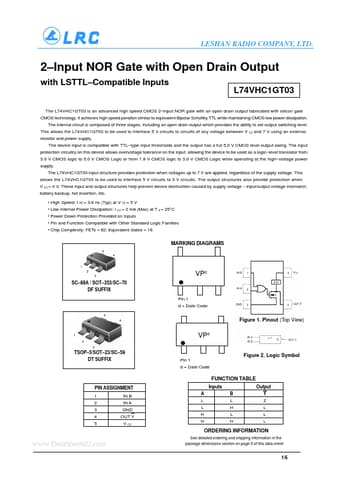

L74VHC1GT03 Datasheet (220.49 KB)

Preview of L74VHC1GT03 PDF
L74VHC1GT03 Datasheet Preview Page 2 L74VHC1GT03 Datasheet Preview Page 3

Datasheet Details

Part number:

L74VHC1GT03

Manufacturer:

LRC

File Size:

220.49 KB

Description:

2-input nor gate with open drain output.
