L74VHC1GT02 2-Input NOR Gate / CMOS Logic Level Shifter

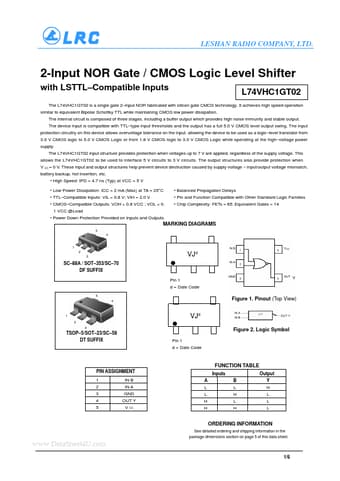

LESHAN RADIO COMPANY, LTD. 2-Input NOR Gate / CMOS Logic Level Shifter with LSTTL Compatible Inputs L74VHC1GT02 The L74VHC1GT02 is a single gate 2 input NOR fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The device input is compatib.

L74VHC1GT02_LRC.pdf

Preview of L74VHC1GT02 PDF
L74VHC1GT02 Datasheet Preview Page 2 L74VHC1GT02 Datasheet Preview Page 3

Datasheet Details

Part number:

L74VHC1GT02

Manufacturer:

LRC

File Size:

193.37 KB

Description:

2-input nor gate / cmos logic level shifter.
