LESD8LL5.0T5G Datasheet - LRC

LESD8LL5.0T5G - ESD PROTECTION DIODE

LESHAN RADIO COMPANY, LTD.

LESD8LL5.0T5G ESD PROTECTION DIODE Discription The LESD8LL5.0T5G is designed top rotect voltage sensitive components from ESD.

Excellent clamping capability, low leakage, and fast response time ,make these parts ideal for ESD protection on designs where board space is at a premium.

Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium.

LESD8LL5.0T5G 1 2

LESD8LL5.0T5G Features

* l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000

* 4

* 2 Level 4 ESD Protection l We declare that the material of product compliant with RoHS requirements and Halogen Free. SOD882 CATHODE ANODE Ordering information D

LESD8LL5.0T5G-LRC.pdf

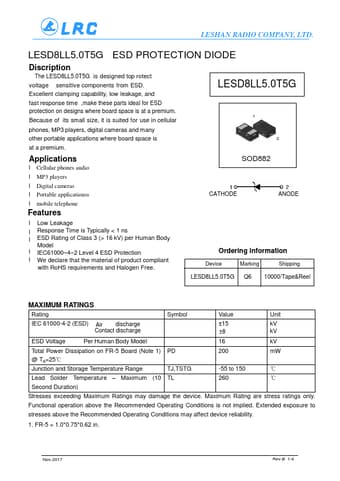

Preview of LESD8LL5.0T5G PDF
LESD8LL5.0T5G Datasheet Preview Page 2 LESD8LL5.0T5G Datasheet Preview Page 3

Datasheet Details

Part number:

LESD8LL5.0T5G

Manufacturer:

LRC

File Size:

447.27 KB

Description:

Esd protection diode.
