S-LP3415ELT1G P-Channel MOSFET

S-LP3415ELT1G Description

LESHAN RADIO COMPANY, LTD.20V P-Channel Enhancement-Mode MOSFET VDS= -20V RDS(ON), Vgs@-4.5V, Ids@-4A = 60 mΩ RDS(ON), Vgs@-2.5V, Ids@-4A = 75 mΩ RD.

S-LP3415ELT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. ▼ Simple Drive Requirement ▼ Small Package Outline ▼ Surface Mount Device Ordering Information Device LP3415ELT1G S-LP3415ELT1G LP3415ELT3G S-LP3415ELT3G Marking P15 P15 Shipping 3000/Tape& Reel 10000/Tap

📥 Download Datasheet

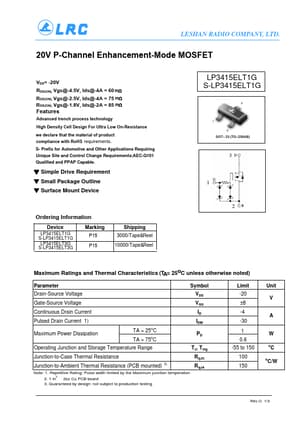

Preview of S-LP3415ELT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-LP3415ELT1G
Manufacturer
LRC
File Size
284.10 KB
Datasheet
S-LP3415ELT1G-LRC.pdf
Description
P-Channel MOSFET
