LC1117

1A Bipolar Linear Regulator

LC1117 Features

* Other than a fixed version and an adjustable version, output value can be customized on command. Maximum output current is 1A Range of operation input voltage: Max 15V Line regulation: 0.2% Load regulation: 0.4% Environment Temperature: -40

LC1117 General Description

LC1117 is a series of low dropout threeterminal regulators with a dropout of 1.26V at 1A load current. Other than a fixed version ( Vout = 1.2V,1.8V,2.5V,2.85V,3.3V,5V ) , LC1117 has an adjustable version, which can provide an output voltage from 1.25 to 13.8V with only two external resistors。 LC111.

LC1117 Datasheet (195.66 KB)

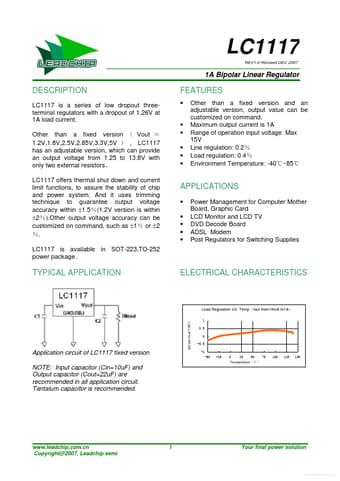

Preview of LC1117 PDF

Datasheet Details

Part number:

LC1117

Manufacturer:

Leadchip semi

File Size:

195.66 KB

Description:

1a bipolar linear regulator.
