LC1118 Dual 1A Low Dropout Regulator

LC1118 Description

LC1118 .
LC1118 is a dual channel low-dropout regulator that delivers a maximum current of 1A for each individual output.

LC1118 Features

* Dual channel output with each individual output can be either fixed output version or adjustable version.
* Maximum output current for each channel is 1A
* Range of operation input voltage: Max 12V
* Standby current of each output: 2mA (typ. )
* Line regulation: 0.1%/V (typ. )

LC1118 Applications

* Power Management for Computer Mother Board, Graphic Card
* LCD Monitor and LCD TV
* DVD Decode Board
* ADSL Modem

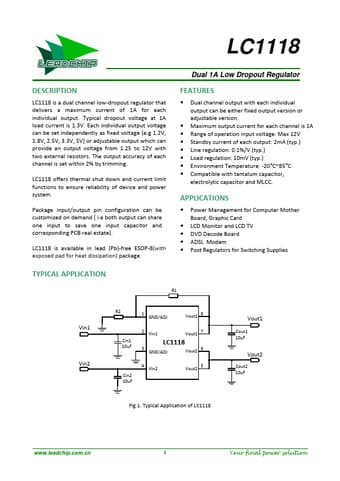

* Post Regulators for Switching Supplies TYPICAL APPLICATION R1 Vin1 Vin2 R2 1 GND/ADJ Vout1 8 2 Vin1 Vout1 7 Cin1 LC1118 10uF 3 GND/ADJ Vout2 6 Cin2
