LD7591S

Transition-Mode PFC Controller

LD7591S Features

* z Transition mode of PFC pre-regulator z Voltage mode control z Programmable max. on-time z Low Startup Current (

LD7591S General Description

The LD7591S is a voltage mode PFC controller operating in transition mode, with several integrated functions of protection, such as OVP, OCP, and Brown-in protection. It reduces the components counts and is available in a SOP-8 or DIP-8 package. Those make it an ideal design for low cost application.

LD7591S Datasheet (411.99 KB)

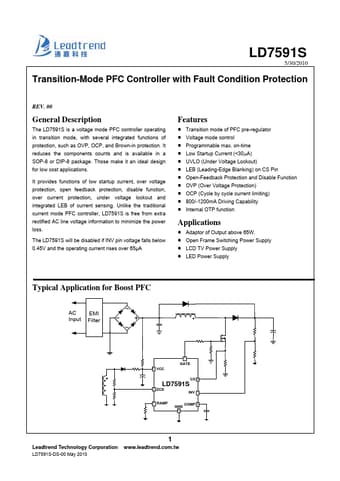

Preview of LD7591S PDF

Datasheet Details

Part number:

LD7591S

Manufacturer:

Leadtrend Technology

File Size:

411.99 KB

Description:

Transition-mode pfc controller.
