LD7591T

Transition-Mode PFC Controller

LD7591T Features

* Transition mode of PFC pre-regulator

* Voltage mode control

* Programmable max. on-time

* Low Startup Current (

LD7591T General Description

The LD7591T is a voltage mode PFC controller operating on transition mode, with several integrated functions of protection, such as OVP, OCP, and Brown-in protection. It reduces the components counts and is available in a SOP-8 or DIP-8 package. Those make it an ideal design for low cost application.

LD7591T Datasheet (391.06 KB)

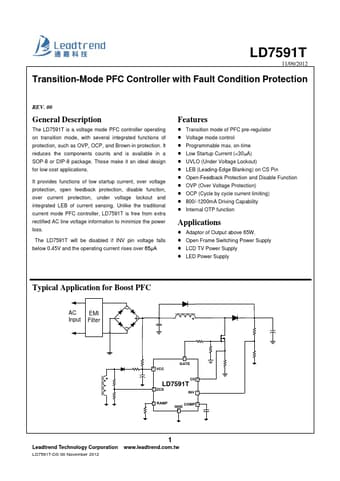

Preview of LD7591T PDF

Datasheet Details

Part number:

LD7591T

Manufacturer:

Leadtrend Technology

File Size:

391.06 KB

Description:

Transition-mode pfc controller.
