AM79C02 Datasheet - Legerity

AM79C02 (AM79C02/03/031) Dual Subscriber Line Audio Processing Circuit Devices

The Am79C02/03/031(A) Dual Subscriber Line Audio Processing Circuit (DSLAC device) integrates the key functions of an analog linecard into a single high-performance, programmable dual codec/filter device. The DSLAC device is based on the proven design of the reliable Am7901A Subscriber Line Audio Pr.
Am79C02/03/031(A) Dual Subscriber Line Audio Processing Circuit (DSLAC™) Devices DISTINCTIVE CHARACTERISTICS I Software programmable: SLIC impedance Transhybrid balance Transmit and receive gains Equalization Digital I/O pins Time Slot Assigner PCM transmit clock edge options I Adaptive transhybrid balance filter (A suffix only) I A-law or µ-law coding I Dual PCM ports Up to 8.192 MHz each (128 channels per port) I 2.

AM79C02 Features

* id

AM79C02 Datasheet (877.82 KB)

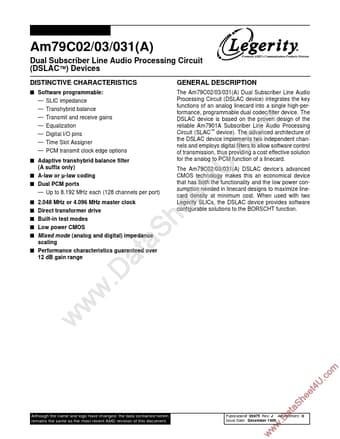

Preview of AM79C02 PDF
AM79C02 Datasheet Preview Page 2 AM79C02 Datasheet Preview Page 3

Datasheet Details

Part number:

AM79C02

Manufacturer:

Legerity

File Size:

877.82 KB

Description:

(am79c02/03/031) dual subscriber line audio processing circuit devices.
