AM79C32A Digital Subscriber Controller (DSC) Circuit

The Am79C30A Digital Subscriber Controller (DSC) Circuit and Am79C32A ISDN Data Controller (IDC) Circuit, shown in the Block Diagram, allow the realization of highly-integrated Terminal Equipment for the ISDN. The Am79C30A/32A is fully compatible with the CCITT-I-series recommendations for the S and.

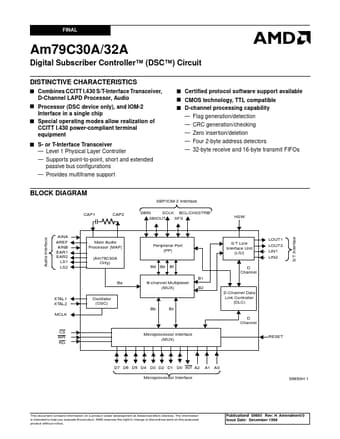

FINAL Am79C30A/32A Digital Subscriber Controller™ (DSC™) Circuit DISTINCTIVE CHARACTERISTICS s Combines CCITT I.430 S/T-Interface Transceiver, D-Channel LAPD Processor, Audio s Processor (DSC device only), and IOM-2 Interface in a single chip s Special operating modes allow realization of CCITT I.430 power-compliant terminal equipment s S- or T-Interface Transceiver Level 1 Physical Layer Controller Supports point-to-point, short and extended passive bus configurations <.

AM79C32A Features

* MCLK output remains active while RESET is held High. Main Audio Processor (MAP) All MAP pins are analog, and therefo
