PESDNC2FD5VBS - TVS Diode

PESDNC2FD5VBS Description

PESDNC2FD5VBS 1-Line Bi-directional TVS Diode .

PESDNC2FD5VBS Features

* Ultra small package: 1.0x0.6x0.5mm
* Ultra low capacitance: 15pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discha

PESDNC2FD5VBS Applications

* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players
* Keypads, Side Keys, LCD Displays Dimensions DFN1006 Pin Configuration Mechanical Characteristics

📥 Download Datasheet

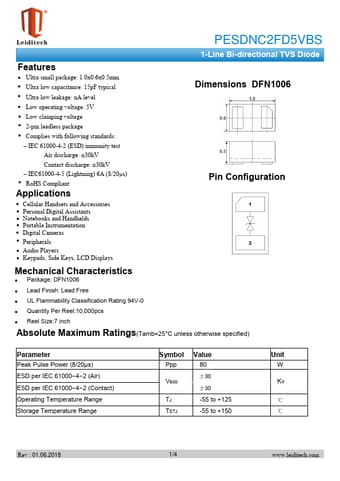

Preview of PESDNC2FD5VBS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESDNC2FD5VBS
Manufacturer
Leiditech
File Size
1.77 MB
Datasheet
PESDNC2FD5VBS-Leiditech.pdf
Description
TVS Diode
