PESDNC2FD12VU - Uni-directional 12V Normal Capacitance ESD Protector

Prisemi

PESDNC2FD12VU Description

PESDNC2FD12VU Uni-directional 12V Normal Capacitance ESD Protector .
The PESDNC2FD12VU ESD protector is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, a.

📥 Download Datasheet

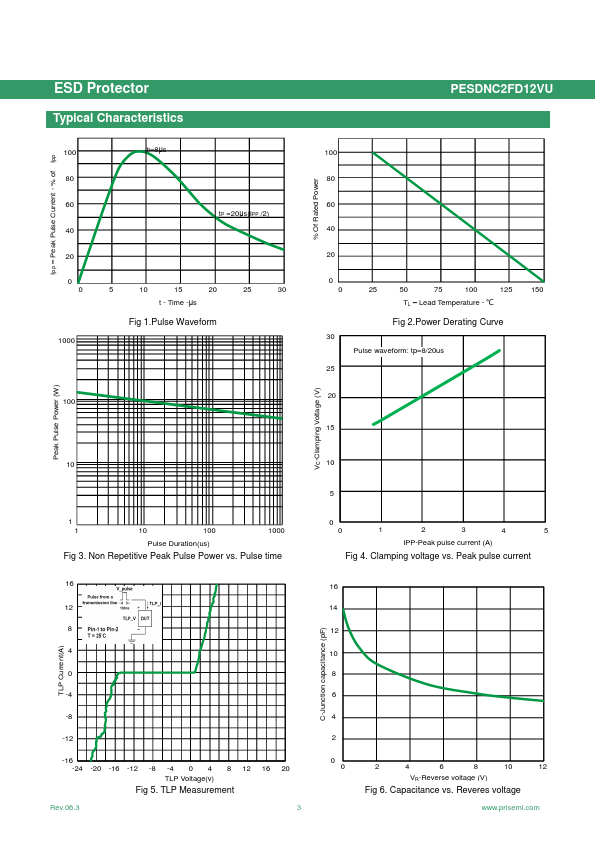

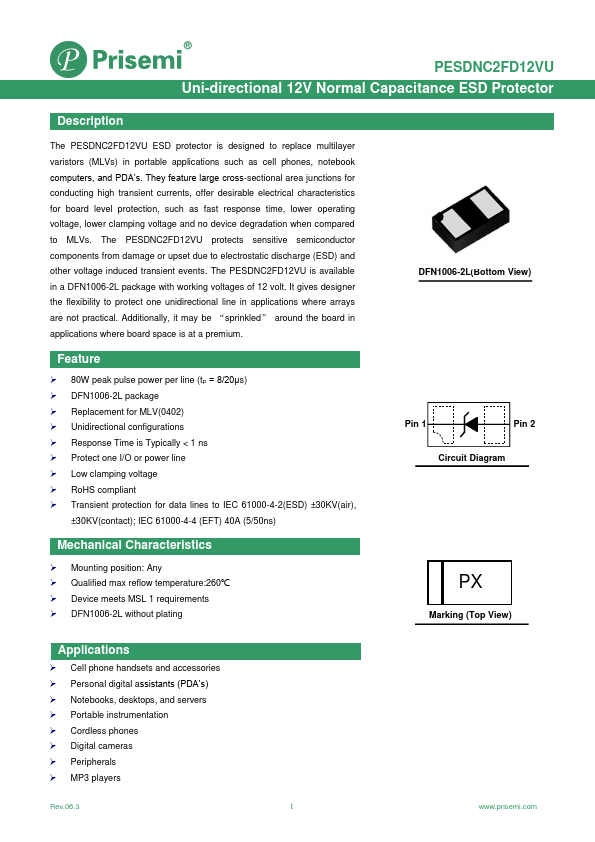

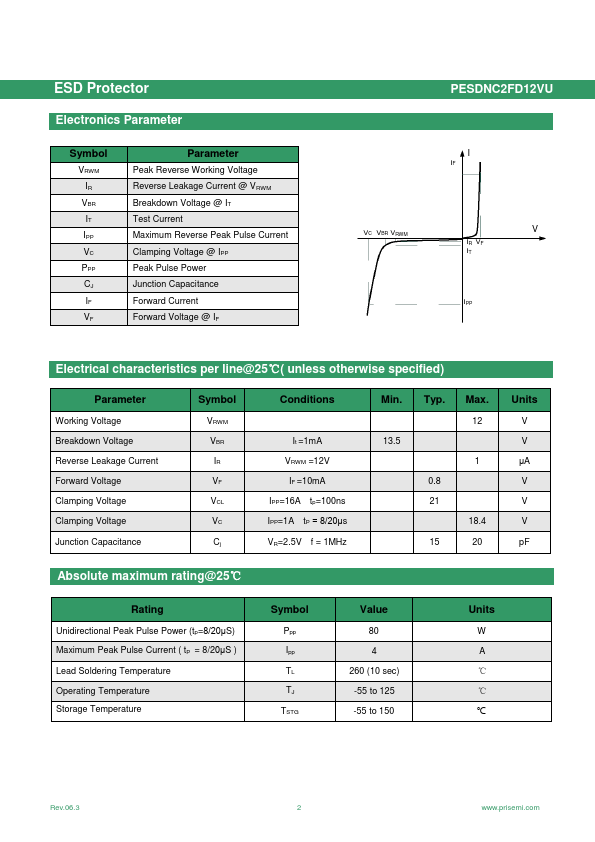

PESDNC2FD12VU Datasheet Preview — Preview of PESDNC2FD12VU PDF

Datasheet Details

Part number: PESDNC2FD12VU
Manufacturer: Prisemi
File Size: 376.99 KB
Datasheet: PESDNC2FD12VU-Prisemi.pdf
Description: Uni-directional 12V Normal Capacitance ESD Protector
