PESDNC2FD24VB - Bi-directional 24V Normal Capacitance ESD Protector

Prisemi

PESDNC2FD24VB Description

PESDNC2FD24VB Bi-directional 24V Normal Capacitance ESD Protector .
The PESDNC2FD24VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced tran.

📥 Download Datasheet

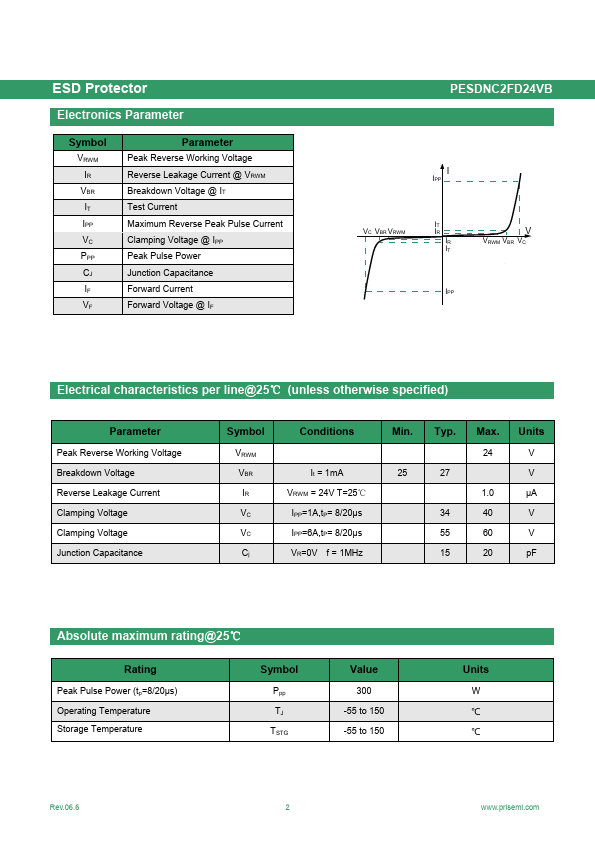

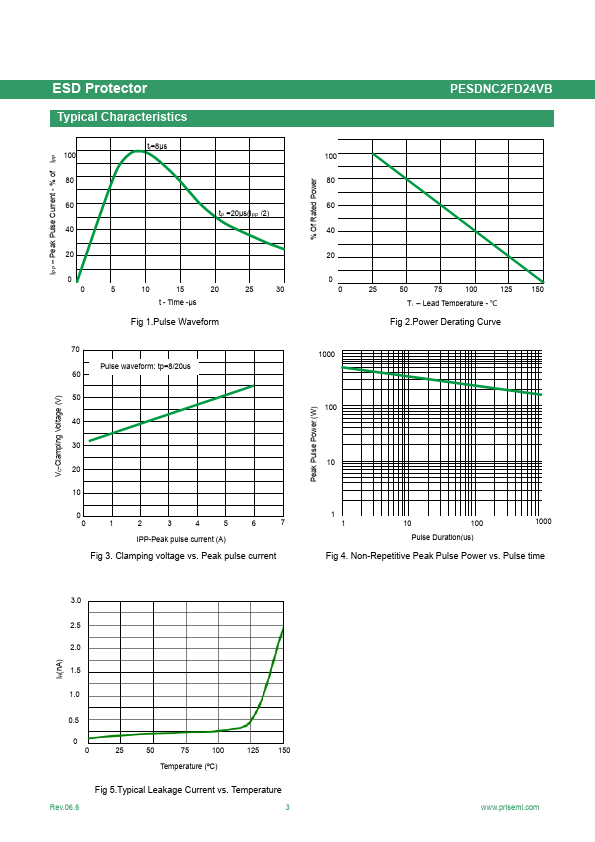

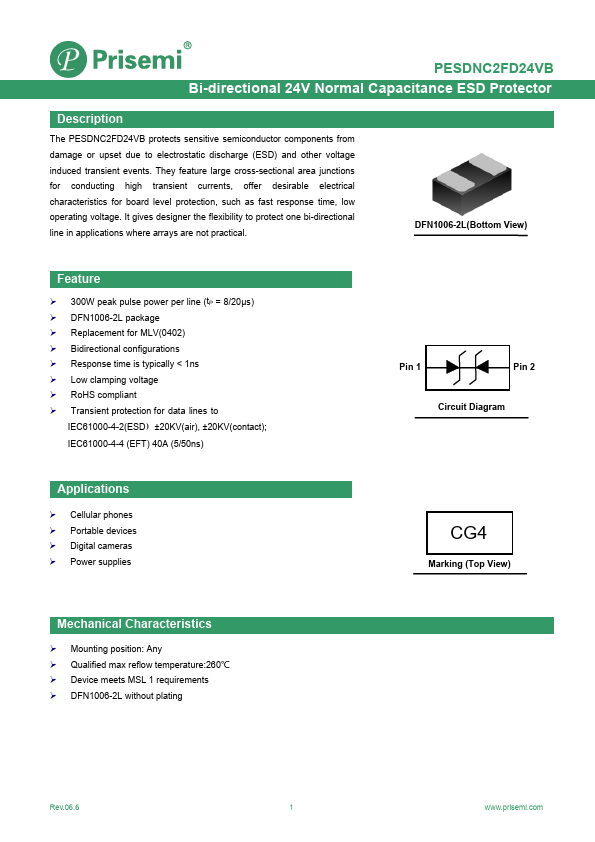

PESDNC2FD24VB Datasheet Preview — Preview of PESDNC2FD24VB PDF

Datasheet Details

Part number: PESDNC2FD24VB
Manufacturer: Prisemi
File Size: 246.75 KB
Datasheet: PESDNC2FD24VB-Prisemi.pdf
Description: Bi-directional 24V Normal Capacitance ESD Protector
