SD18C - BIDIRECTIONAL TVS DIODE

SD18C Description

.

SD18C Features

* Ultra low leakage: nA level
* Operating voltage: 18V
* Low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
* IEC61000-4-4 (EFT) 40A (5/50ns)
* IEC61000-4-5 (Lightning) 12A

SD18C Applications

* USB 2.0 power and data line
* Set-top box and digital TV
* Digital video interface (DVI)
* Notebook Computers
* SIM Ports
* 10/100 Ethernet Mechanical Characteristics
* Package: SOD-323
* Lead Finish: Lead Free
* UL Flammability Classification Rating 94V-0

📥 Download Datasheet

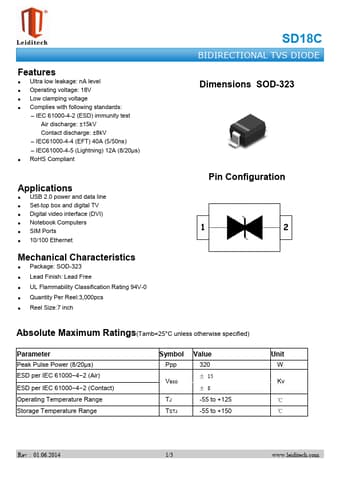

Preview of SD18C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD18C
Manufacturer
Leiditech
File Size
126.07 KB
Datasheet
SD18C-Leiditech.pdf
Description
BIDIRECTIONAL TVS DIODE
