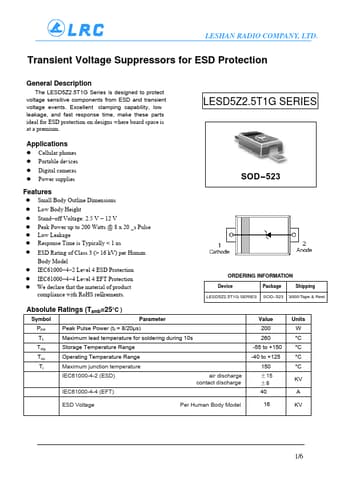

LESD5Z2.5T1G Datasheet - Leshan Radio Company

LESD5Z2.5T1G - Transient Voltage Suppressors

The LESD5Z2.5T1G Series is designed to protect voltage sensitive components from ESD and transient voltage events.

Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.

LESD5Z2.5T1G SERIES Applica

LESD5Z2.5T1G Features

* z Small Body Outline Dimensions z Low Body Height z Stand

* off Voltage: 2.5 V

* 12 V z Peak Power up to 200 Watts @ 8 x 20 _s Pulse z Low Leakage z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16 kV) per Human Body Model z IEC61000

* 4

* 2 Level 4 ESD Prote
