LESD3Z5.0CMT1G

Transient Voltage Suppressors

LESD3Z5.0CMT1G Features

* Small Body Outline Dimensions

* Low Body Height

* Peak Power up to 200 Watts @ 8 x 20 _s Pulse

* Low Leakage current

* Response Time is Typically < 1 ns

* ESD Rating of Class 3 (> 16 kV) per Human Body Model

* IEC61000

* 4

* 2 Lev

LESD3Z5.0CMT1G General Description

The LESD3Z5.0CMT1G is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications

* Cellular ph.

LESD3Z5.0CMT1G Datasheet (272.62 KB)

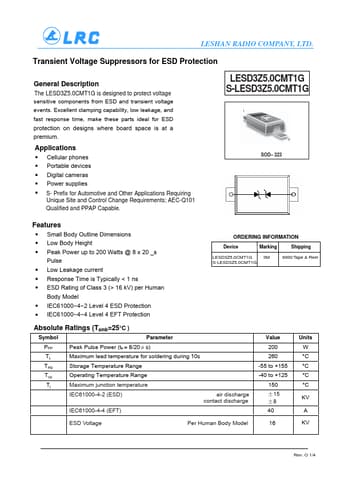

Preview of LESD3Z5.0CMT1G PDF

Datasheet Details

Part number:

LESD3Z5.0CMT1G

Manufacturer:

LRC

File Size:

272.62 KB

Description:

Transient voltage suppressors.
