LESDA12AW5T1G

Low Capacitance Quad Array

LESDA12AW5T1G Features

* Uni-directional ESD protection of up to five lines

* Bi-directional ESD protection of up to four lines

* Low diode capacitance

* Low clamping voltage ORDERING INFORMATION Device LESDA12AW5T1G Package SC-88A Shipping 3000/Tape & Reel

* low leakage current

LESDA12AW5T1G General Description

Low capacitance 4-fold ESD protection array in the very small SOT353 plastic package designed to protect up to five transmission or data lines from the damage caused by Electrostatic Discharge (ESD). LESDA12AW5T1G Applications

* Cellular handsets and accessories

* Portable electron.

LESDA12AW5T1G Datasheet (906.71 KB)

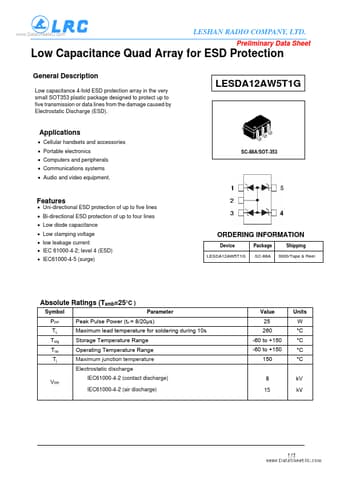

Preview of LESDA12AW5T1G PDF

Datasheet Details

Part number:

LESDA12AW5T1G

Manufacturer:

Leshan Radio Company

File Size:

906.71 KB

Description:

Low capacitance quad array.
