LM1MA142WAT3G, LM1MA141WAT1G Common Anode Silicon Dual Switching Diode

LM1MA142WAT3G Description

S-LM1MA142WAT3G LESHAN RADIO COMPANY, LTD.Common Anode Silicon Dual Switching Diode This Common Anode Silicon Epitaxial Planar Dual Diode is design.

LM1MA142WAT3G Applications

* This device is housed in the SC
* 70 package which is designed for low power surface mount applications. z
* Fast trr, < 10 ns z
* Low CD, < 15 pF z We declare that the material of product compliance with RoHS requirements. z S- Prefix for Automotive and Other Applications Requi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM1MA142WAT3G, LM1MA141WAT1G. Please refer to the document for exact specifications by model.

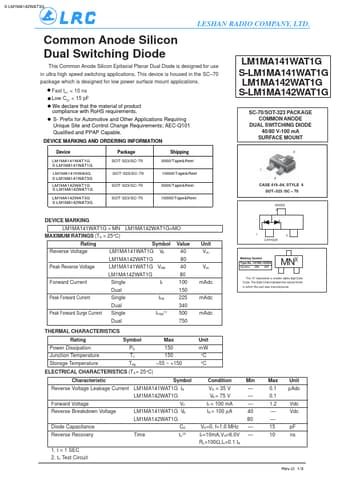

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM1MA142WAT3G, LM1MA141WAT1G
Manufacturer
Leshan Radio Company
File Size
67.90 KB
Datasheet
LM1MA141WAT1G-LeshanRadioCompany.pdf
Description
Common Anode Silicon Dual Switching Diode
Note
This datasheet PDF includes multiple part numbers: LM1MA142WAT3G, LM1MA141WAT1G.
Please refer to the document for exact specifications by model.
