LM1MA142WKT1G Common Cathode Silicon Dual Switching Diode

LESHAN RADIO COMPANY, LTD. Common Cathode Silicon Dual Switching Diode This Common Cathode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC-70 package which is designed for low power surface mount applications. z Fast t, rr < 3.0 ns z Low C, D < 2.0 pF z We declare that the material of product compliance with RoHS requirements. z S- Prefix for Automotive and Other Applications Re.

LM1MA141WKT1G-LeshanRadioCompany.pdf

This datasheet PDF includes multiple part numbers: LM1MA142WKT1G, LM1MA141WKT1G. Please refer to the document for exact specifications by model.

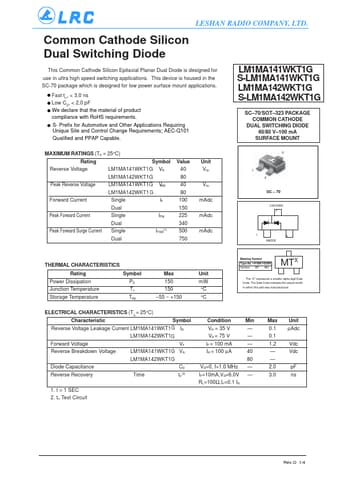

LM1MA142WKT1G Datasheet Preview Page 2 LM1MA142WKT1G Datasheet Preview Page 3

Datasheet Details

Part number:

LM1MA142WKT1G, LM1MA141WKT1G

Manufacturer:

Leshan Radio Company

File Size:

227.87 KB

Description:

Common cathode silicon dual switching diode.

Note:

This datasheet PDF includes multiple part numbers: LM1MA142WKT1G, LM1MA141WKT1G.
Please refer to the document for exact specifications by model.
