S-LBAS70LT1G

SCHOTTKY BARRIER DIODE

S-LBAS70LT1G Datasheet (81.90 KB)

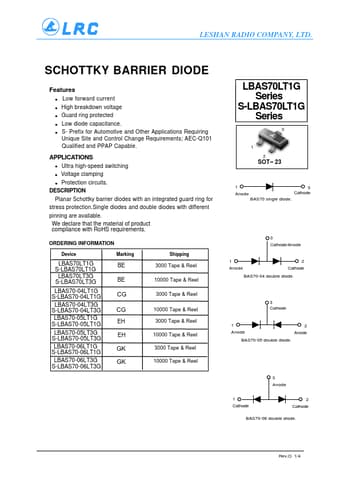

Preview of S-LBAS70LT1G PDF

Datasheet Details

Part number:

S-LBAS70LT1G

Manufacturer:

Leshan Radio Company

File Size:

81.90 KB

Description:

Schottky barrier diode.

S-LBAS70LT1G Features

* Low forward current High breakdown voltage Guard ring protected Low diode capacitance. S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. APPLICATIONS Ultra high-speed switching Voltage clamping Protection circu

S-LBAS70LT1G General Description

Planar Schottky barrier diodes with an integrated guard ring for stress protection.Single diodes and double diodes with different pinning are available. We declare that the material of product compliance with RoHS requirements. ORDERING INFORMATION Device LBAS70LT1G S-LBAS70LT1G LBAS70LT3G S-LBAS7.
