LM12057AD - 1.20 inch 5x7 Dot Matrix LED Display

Product Overview

LightKey

Part number	LM12057AD
Manufacturer	LightKey
File Size	131.60 KB
Description	1.20 inch 5x7 Dot Matrix LED Display
Datasheet	LM12057AD Datasheet
Note	This datasheet PDF includes multiple part numbers: LM12057AD, LM12057A. Please refer to the document for exact specifications by model.

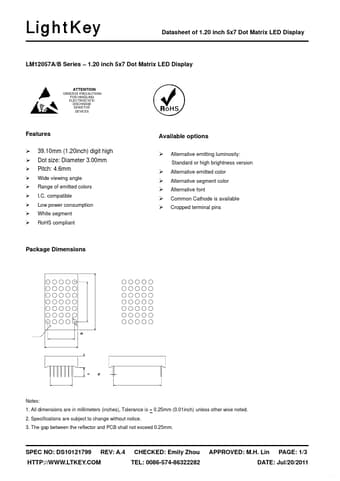

Additional preview pages of the LM12057AD datasheet.

¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins 39.10mm (1.20inch) digit high Dot size: Diameter 3.00mm Pitch: 4.6mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Package Dimensions Notes: 1. All dimensions are in millimeters (inches), Toleranc.
