LM1205

130 MHz/85 MHz RGB Video Amplifier System with Blanking

LM1205 Features

* Y Y High resolution RGB CRT monitors Video AGC amplifiers Wideband amplifiers with gain and DC offset controls Interface amplifiers for LCD or CCD systems Three wideband video amplifiers 130 MHz (LM1205) b 3 dB (4 VPP output) Matched ( g 0 1 dB or 1 2%) attenuators for contrast control Block and

LM1205 General Description

The LM1205 LM1207 is a very high frequency video amplifier system intended for use in high resolution RGB monitor applications In addition to the three matched video amplifiers the LM1205 LM1207 contains three gated single ended input black level clamp comparators for brightness control three matche.

LM1205 Datasheet (435.35 KB)

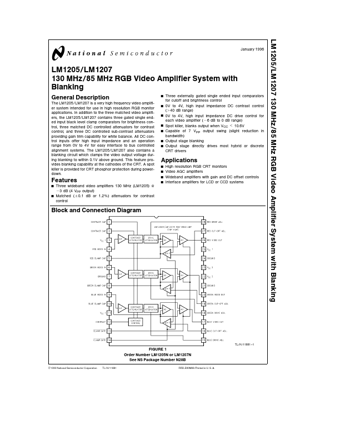

Preview of LM1205 PDF

Datasheet Details

Part number:

LM1205

Manufacturer:

National Semiconductor

File Size:

435.35 KB

Description:

130 mhz/85 mhz rgb video amplifier system with blanking.
LM1205 LM1207 130 MHz 85 MHz RGB Video Amplifier System with Blanking January 1996 LM1205 LM1207 130 MHz 85 MHz RGB Video Amplifier System with Blan.
