LM1203A

150MHz RGB Video Amplifier System

LM1203A Features

* Y Three wideband video amplifiers 150 MHz b3 dB Y Matched (g0 1 dB or 1 2%) attenuators for contrast control Y Three externally gated comparators for brightness control Y Provisions for individual gain control (Drive) of each video

LM1203A General Description

The LM1203A is an improved version of the popular LM1203 wideband video amplifier system The device is intended for high resolution RGB CRT monitors In addition to three matched video amplifiers the LM1203A contains three gated differential input black level clamp comparators for brightness control .

LM1203A Datasheet (294.65 KB)

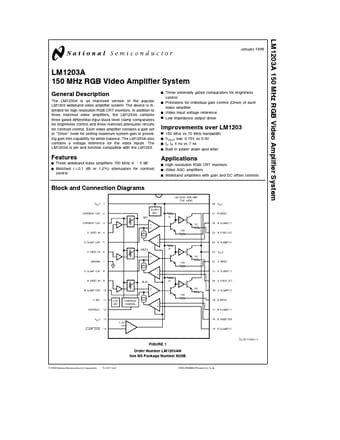

Preview of LM1203A PDF

Datasheet Details

Part number:

LM1203A

Manufacturer:

National Semiconductor

File Size:

294.65 KB

Description:

150mhz rgb video amplifier system.
