LM120 3-Terminal Negative Regulators

National Semiconductor

Description

LM120/LM320 Series 3-Terminal Negative Regulators November 15, 2007 LM120/LM320 Series 3-Terminal Negative Regulators General .
The LM120 series are three-terminal negative regulators with a fixed output voltage of. 5V,. 12V, and. 15V, and up to 1.

📥 Download Datasheet

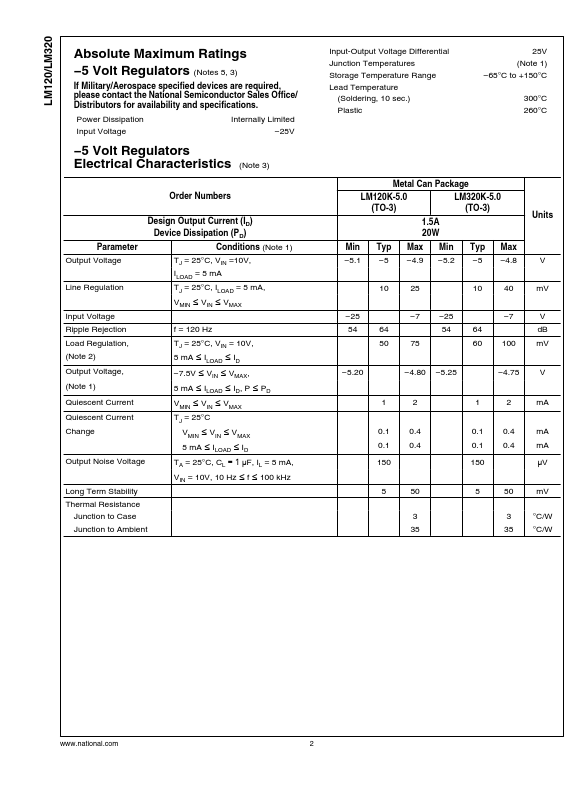

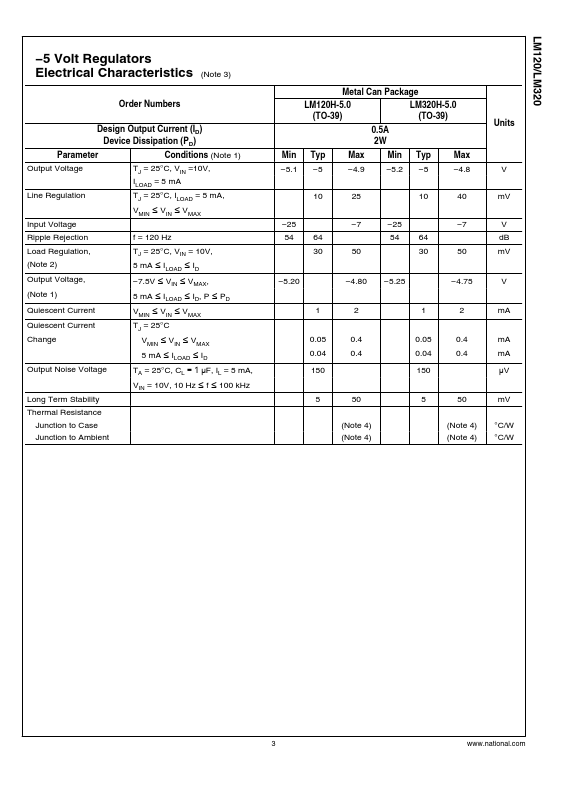

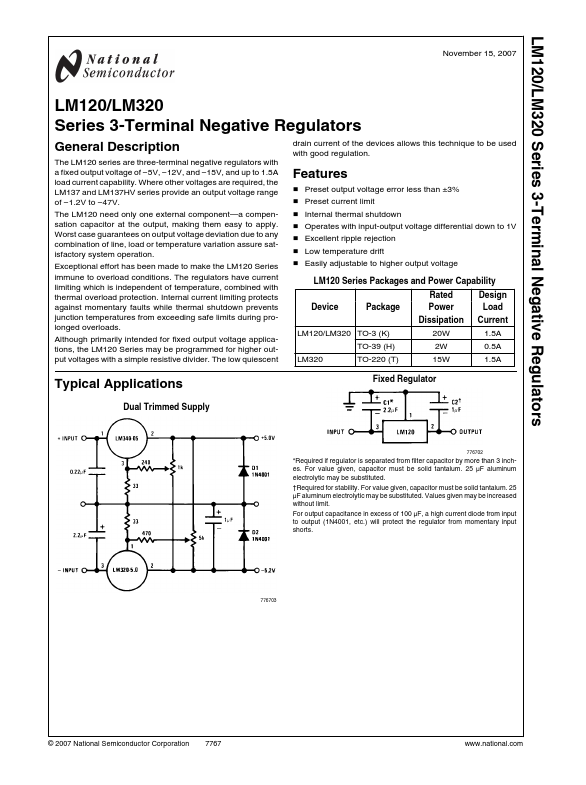

LM120 Datasheet Preview — Preview of LM120 PDF

Datasheet Specifications

Part number: LM120
Manufacturer: National Semiconductor
File Size: 538.43 KB
Datasheet: LM120-NationalSemiconductor.pdf
Description: 3-Terminal Negative Regulators

Features

* Preset output voltage error less than ±3%
* Preset current limit
* Internal thermal shutdown
* Operates with input-output voltage differential down to 1V
* Excellent ripple rejection
* Low temperature drift
* Easily adjustable to higher output voltage LM120 Series Pack
