LM120-12 1.5 AMP NEGATIVE VOLTAGE REGULATOR

The IP120A / LM120 / IP7900A / IP7900 series of 3 terminal regulators is available with several fixed output voltage making them useful in a wide range of applications. The A suffix devices provide 0.01% / V line regulation, 0.3% / A load regulation and ±1% output voltage tolerance at room temperatu.

LM120-12 Features

* OUTPUT VOLTAGES OF -5, -12, -15V

* 0.01% / V LINE REGULATION

* 0.3% / A LOAD REGULATION

* THERMAL OVERLOAD PROTECTION K Package

* TO

* 3 R Package

* TO

* 66 !

* SHORT CIRCUIT PROTECTION 1 2 3

* OUTPUT TRANSISTOR SO

LM120-12_SemeLAB.pdf

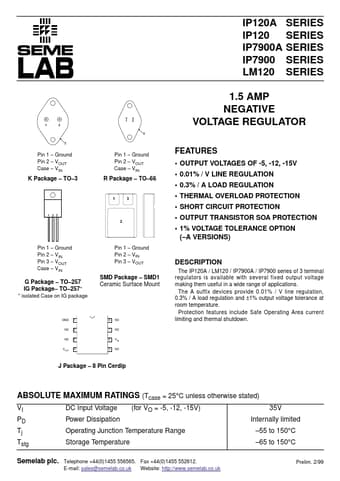

LM120-12 Datasheet Preview — Preview of LM120-12 PDF

Datasheet Details

Part number:

LM120-12

Manufacturer:

Seme LAB

File Size:

41.09 KB

Description:

1.5 amp negative voltage regulator.
