LM1203B - 100MHz RGB Video Amplifier System

Product Overview

National Semiconductor

Datasheet Details

Part number	LM1203B
Manufacturer	National Semiconductor
File Size	279.98 KB
Description	100MHz RGB Video Amplifier System
Datasheet	LM1203B Datasheet

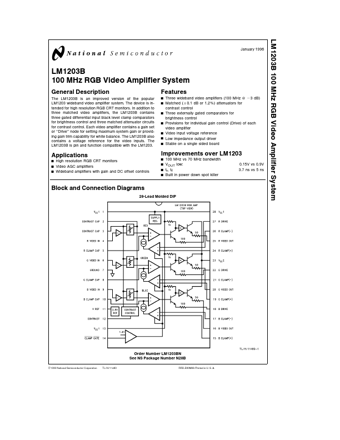

Additional preview pages of the LM1203B datasheet.

Product details

Description

The LM1203B is an improved version of the popular LM1203 wideband video amplifier system The device is intended for high resolution RGB CRT monitors In addition to three matched video amplifiers the LM1203B contains three gated differential input black level clamp comparators for brightness control and three matched attenuator circuits for contrast control Each video amplifier contains a gain set or ‘‘Drive’’ node for setting maximum system gain or providing gain trim capability for white balanc

Features

Y Three wideband video amplifiers (100 MHz b3 dB) Y Matched (g0 1 dB or 1 2%) attenuators for contrast con.
