LD6905 - Adjustable Precision Shunt Regulators

LD6905 Description

.
This series of fixed voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications.

LD6905 Features

* 3-terminal regulators
* Output current up to 100mA
* No external components

LD6905 Applications

* TFT flat panel backlighting
* AC/DC LED lamp
* LED traffic light
* T5, T8 LED line bar
* MR-16 lamp Signage or decorative LED lamp Package Pin Out Preliminary

📥 Download Datasheet

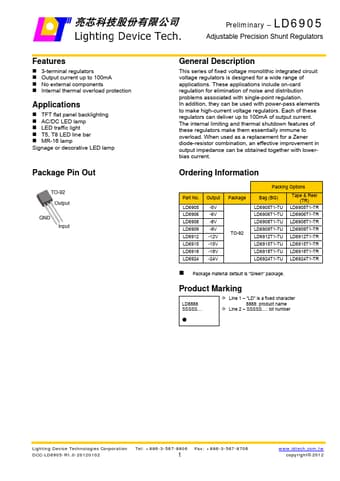

Preview of LD6905 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD6905
Manufacturer
Lighting Device Technologies
File Size
151.35 KB
Datasheet
LD6905-LightingDeviceTechnologies.pdf
Description
Adjustable Precision Shunt Regulators
