LD6904 - 120mA Negative Voltage Linear Regulator

LD6904 Description

LD6904 3/5/2008 120mA Negative Voltage Linear Regulator REV: 01 General .
The LD6904 is a negative voltage, micropower linear regulator.

LD6904 Features

* wide input voltage, low-noise, low-dropout and low-quiescent current. The precision of feedback reference voltage is within ±1% and output current reaches up to 120mA. The built-in output current limiting and thermal shutdown protection could prevent from fault conditions. The LD6904 is available in

LD6904 Applications

* z Microcontroller Power z Hand-Held Instruments Typical Application VIN/-8V 1μF/X5R VIN OUT CE LD6904 4.7nF SS FB GND VOUT-7.5V R1/50K 1μF/X5R
* R2/10K
* R2

📥 Download Datasheet

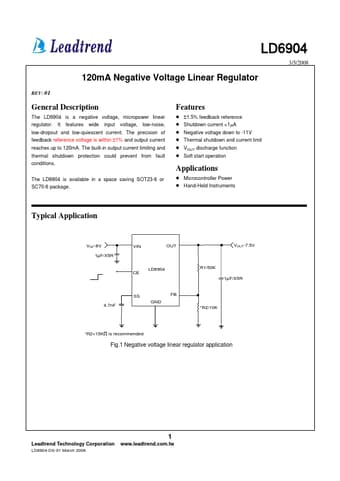

Preview of LD6904 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD6904
Manufacturer
Leadtrend
File Size
213.70 KB
Datasheet
LD6904-Leadtrend.pdf
Description
120mA Negative Voltage Linear Regulator
