LD6914 - Adjustable CMOS LDO Regulator

LD6914 Description

LD6914 7/22/2008 150mA, Adjustable CMOS LDO Regulator REV: 00 General .
The LD6914 is a micropower linear regulator, featuring low-dropout and high ripple rejection ratio.

LD6914 Features

* z Shutdown current

LD6914 Applications

* z Battery-Powered Equipment z Hand-Held Instruments Typical Application V IN 1μF/X5R VIN C IN CE OUT LD6914 GND
* R2 should be below 120KΩ FB VOUT R1 1μF/X5R COUT R2
* Fig.1 Typical Application Circuit Leadtrend Technology Corporation LD6914-DS-00, July 2008 1 www. leadtrend. com. tw P

📥 Download Datasheet

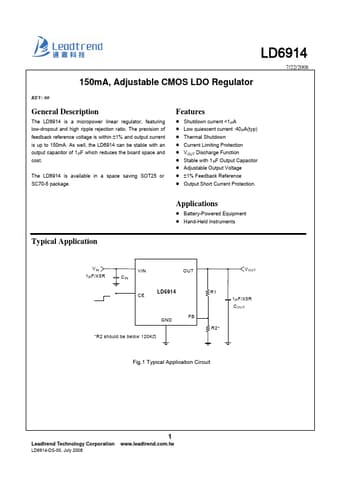

Preview of LD6914 PDF
