LD6919 - High PSRR CMOS LDO Regulator

LD6919 Description

LD6919 4/12/2010 500mA, Ultra-Low Noise, High PSRR CMOS LDO Regulator with Soft Start Function REV: 00b General .
The LD6919 is a micro power linear regulator with very low output voltage drop during load transient, featuring ultra-low noise, low-dropout and high.

LD6919 Applications

* z Battery-Powered Equipment z Hand-Held Instruments z Palmtops, Notebook Computers Typical Application Fig. 1 Typical Application Circuit for General Purpose Reference example RJ (Ω)(1%) VOUT RJ open 3.1V 2.2M 3.0V 680k 2.8V 510k 2.7V 300k 2.5V 100k 1.8V VOUT (w. RJ ) = R J (kΩ) RJ

📥 Download Datasheet

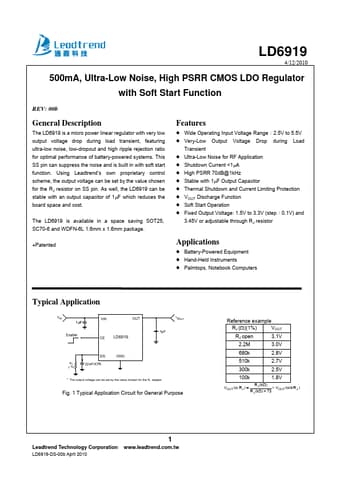

Preview of LD6919 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD6919
Manufacturer
Leadtrend
File Size
288.02 KB
Datasheet
LD6919-Leadtrend.pdf
Description
High PSRR CMOS LDO Regulator
