LD6918 Datasheet - Leadtrend

Low-Noise CMOS Dual LDO Regulators

LD6918 Features

* z Wide Operating range: 2.5V to 5.5V z Low Noise for RF application z No Noise Bypass capacitor required z Low Quiescent Current: 40μA (typ.)/LDO z High Output Voltage Accuracy: ±1% z High RSRR:70dB @ 1KHz z VOUT Discharge Function z Very Small Inrush Current z Thermal Shutdown and Current Limiting

LD6918 General Description

The LD6918 is a dual micro power linear regulator, featuring low quiescent current, low-noise, low-dropout and high ripple rejection ration. The precision of feedback reference voltage is within ±1% and output current is up to 300mA. As well, the LD6918 can be stable with a 1μF low ESR ceramic outpu.

LD6918 Datasheet (887.06 KB)

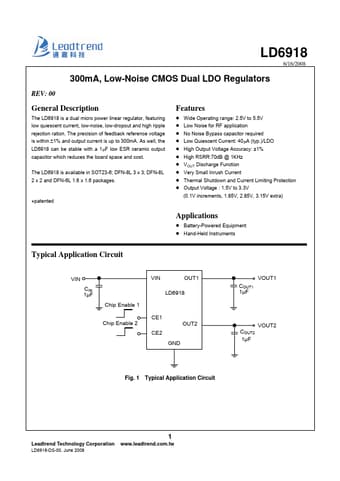

Preview of LD6918 PDF

Datasheet Details

Part number:

LD6918

Manufacturer:

Leadtrend

File Size:

887.06 KB

Description:

Low-noise cmos dual ldo regulators.
