LD6903 - 60mA High Voltage Linear Regulator

LD6903 Description

60mA High Voltage Linear Regulator LD6903 6/6/06 REV:01 General .
The LD6903 is a high voltage, micropower linear regulator, which features wide input voltage, low-noise, low-dropout and low-quiescent current.

LD6903 Features

* wide input voltage, low-noise, low-dropout and low-quiescent current. The precision of feedback reference voltage is within ±1.5% and output current is up to 60mA. The LD6903 is available in a space saving SOT23-6 or SC70-6 package. +Patent pending Features z ±1.5% feedback reference z Shutdown cur

LD6903 Applications

* z Microcontroller Power z Hand-Held Instruments Typical Application VIN/15.5V 0.1µF/X5R 3.3nF VIN OUT LD6903 CE R1/100K SS GND FB R2/9.09K VOUT/15V 2.2µF/X5R Fig.1 High voltage linear regulator application Leadtrend Technology Corporation LD6903-DS-01, May 2006 1 LD6903 VIN 15V 0.1µF/X5

📥 Download Datasheet

Preview of LD6903 PDF

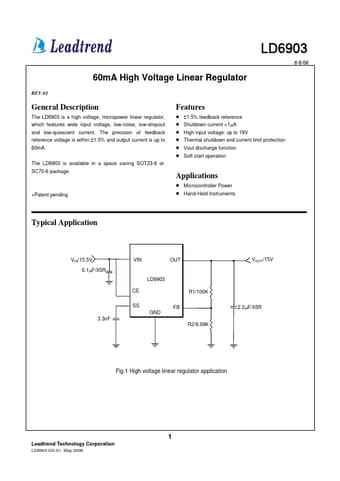

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD6903
Manufacturer
Leadtrend
File Size
254.19 KB
Datasheet
LD6903-Leadtrend.pdf
Description
60mA High Voltage Linear Regulator
