LD6915

Dual low-dropout regulators

LD6915 Datasheet (446.89 KB)

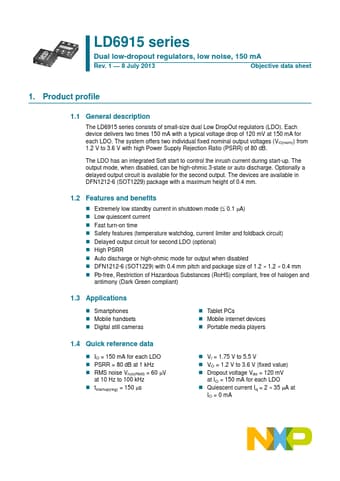

Preview of LD6915 PDF Datasheet

Datasheet Details

Part number:

LD6915

Manufacturer:

NXP ↗

File Size:

446.89 KB

Description:

Dual low-dropout regulators

LD6915 Features

* Extremely low standby current in shutdown mode ( 0.1 A)

* Low quiescent current

* Fast turn-on time

* Safety features (temperature watchdog, current limiter and foldback circuit)

* Delayed output circuit for second LDO (optional)

* High PSRR

* Auto discharge or high-o

LD6915 General Description

The LD6915 series consists of small-size dual Low DropOut regulators (LDO). Each device delivers two times 150 mA with a typical voltage drop of 120 mV at 150 mA for each LDO. The system offers two individual fixed nominal output voltages (VO(nom)) from 1.2 V to 3.6 V with high Power Supply Rejectio.
