NSR006A0X4Z

Naos Raptor 6A: Non-Isolated DC-DC Power Modules

NSR006A0X4Z Features

* Compliant to RoHS EU Directive 2002/95/EC (Z versions) Compatible in a Pb-free or SnPb wave-soldering environment (Z versions) Wide Input voltage range (4.5Vdc-14Vdc) Output voltage programmable from 0.59 Vdc to 6Vdc via external resistor Tunable Loop response TM to op

NSR006A0X4Z General Description

The Naos Raptor 6A SIP power modules are non-isolated dc-dc converters in an industry standard package that can deliver up to 6A of output current with a full load efficiency of 91.5% at 3.3Vdc output voltage (VIN = 12Vdc). These modules operate over a wide range of input voltage (VIN = 4.5Vdc-14Vdc.

NSR006A0X4Z Datasheet (501.60 KB)

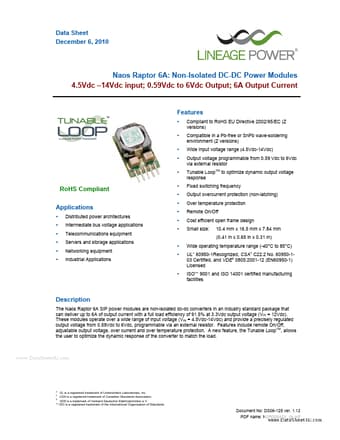

Preview of NSR006A0X4Z PDF

Datasheet Details

Part number:

NSR006A0X4Z

Manufacturer:

Lineage Power

File Size:

501.60 KB

Description:

Naos raptor 6a: non-isolated dc-dc power modules.
Data Sheet December 6, 2010 Naos Raptor 6A: Non-Isolated DC-DC Power Modules 4.5Vdc

*14Vdc input; 0.59Vdc to 6Vdc Output; 6A Output Current .
