NSR010A0X4Z

Naos Raptor 10A: Non-Isolated DC-DC Power Modules

NSR010A0X4Z Features

* Compliant to RoHS EU Directive 2002/95/EC (Z versions) Compatible in a Pb-free or SnPb wave-soldering environment (Z versions) Wide Input voltage range (4.5Vdc-14Vdc) Output voltage programmable from 0.59 Vdc to 6Vdc via external resistor Tunable Loop response TM to op

NSR010A0X4Z General Description

The Naos Raptor 10A SIP power modules are non-isolated dc-dc converters in an industry standard package that can deliver up to 10A of output current with a full load efficiency of 89.6% at 3.3Vdc output voltage (VIN = 12Vdc). These modules operate over a wide range of input voltage (VIN = 4.5Vdc-14V.

NSR010A0X4Z Datasheet (518.21 KB)

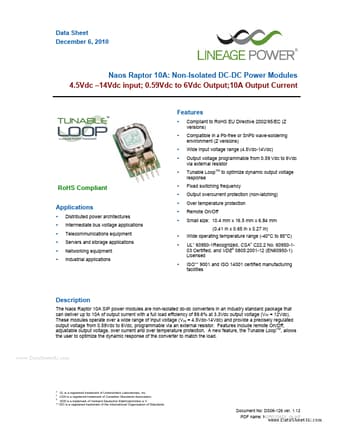

Preview of NSR010A0X4Z PDF

Datasheet Details

Part number:

NSR010A0X4Z

Manufacturer:

Lineage Power

File Size:

518.21 KB

Description:

Naos raptor 10a: non-isolated dc-dc power modules.
Data Sheet December 6, 2010 Naos Raptor 10A: Non-Isolated DC-DC Power Modules 4.5Vdc

*14Vdc input; 0.59Vdc to 6Vdc Output;10A Output Current .
