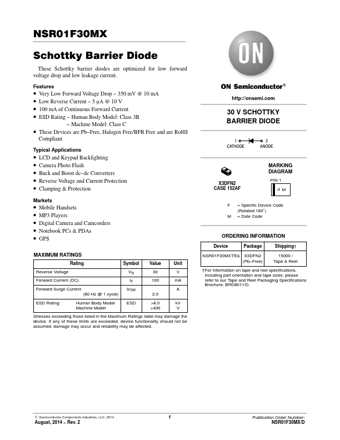

NSR01F30MX Datasheet, Diode, ON Semiconductor

NSR01F30MX Features

• Diode
• Very Low Forward Voltage Drop
• 350 mV @ 10 mA
• Low Reverse Current
• 5 mA @ 10 V
• 100 mA of Continuous Forward Current
• ESD Rating

PDF File Details

Part number:

NSR01F30MX

Manufacturer:

ON Semiconductor ↗

File Size:

39.67kb

Download:

📄 Datasheet

Description:

Schottky barrier diode.

NSR01F30MX Application

• Applications
• LCD and Keypad Backlighting
• Camera Photo Flash
• Buck and Boost dc
• dc Converters
• Reverse
