NSR01F30NXT5G - Schottky Barrier Diode

NSR01F30NXT5G Description

Schottky Barrier Diode NSR01F30NXT5G These Schottky barrier diodes are optimized for low forward voltage drop and low leakage current.The DSN2 (Dua.

NSR01F30NXT5G Features

* Very Low Forward Voltage Drop
* 370 mV @ 10 mA
* Low Reverse Current
* 7.0 mA @ 10 V VR
* 100 mA of Continuous Forward Current
* ESD Rating
* Human Body Model: Class 3B ESD Rating
* Machine Model: Class C
* Very High Switching

NSR01F30NXT5G Applications

* LCD and Keypad Backlighting
* Camera Photo Flash
* Buck and Boost dc
* dc Converters
* Reverse Voltage and Current Protection
* Clamping & Protection Markets
* Mobile Handsets
* MP3 Players
* Digital Camera and Camcorders

📥 Download Datasheet

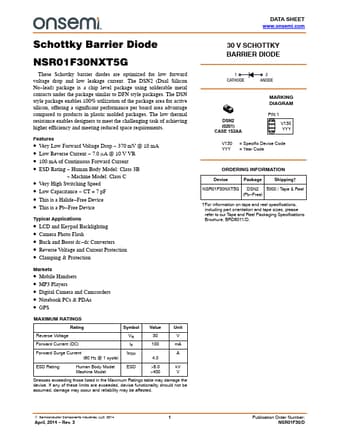

Preview of NSR01F30NXT5G PDF
