LTC5583 Datasheet, Detector, Linear Technology Corporation

LTC5583 Features

  • Detector n Frequency Range: 40MHz to 6GHz n Linear Dynamic Range: Up to 60dB n ±0.5dB (Typ) Accuracy Over Temperature n 40dB Channel-to-Channel Isolation at 2GHz Even with Single-Ended RF Inputs

PDF File Details

Part number:

LTC5583

Manufacturer:

Linear Technology Corporation

File Size:

1.11MB

Download:

📄 Datasheet

Description:

Matched dual-channel 6ghz rms power detector. The LTC®5583 is a dual-channel RMS power detector, capable of measuring two AC signals with wide dynamic range, from

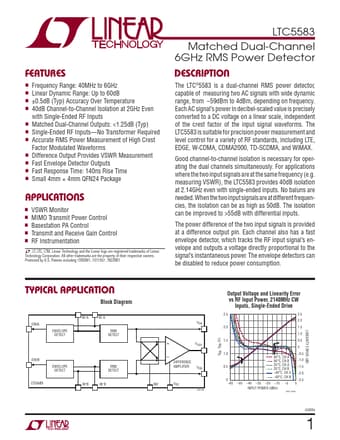

Datasheet Preview: LTC5583 📥 Download PDF (1.11MB)
Page 2 of LTC5583 Page 3 of LTC5583

LTC5583 Application

  • Applications n VSWR Monitor n MIMO Transmit Power Control n Basestation PA Control n Transmit and Receive Gain Control n RF Instrumentation L, LT, L
