LTC5584 Datasheet, Demodulator, Linear Technology

LTC5584 Features

  • Demodulator n I/Q Bandwidth of 530MHz or Higher n High IIP3: 31dBm at 450MHz, 28dBm at 900MHz n High IIP2: 70dBm at 450MHz, 65dBm at 900MHz n User Adjustable IIP2 to >80dBm n User Adjusta

PDF File Details

Part number:

LTC5584

Manufacturer:

Linear Technology

File Size:

1.18MB

Download:

📄 Datasheet

Description:

30mhz to 1.4ghz iq demodulator. The LTC®5584 is a direct conversion quadrature demodulator optimized for high linearity receiver applications in the 30MHz to 1.4GHz

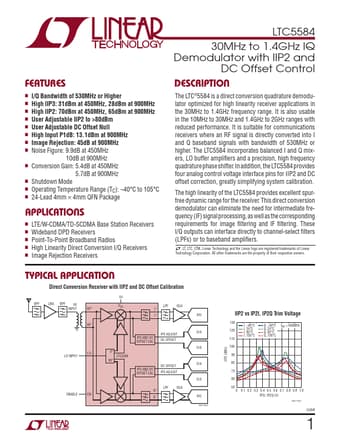

Datasheet Preview: LTC5584 📥 Download PDF (1.18MB)
Page 2 of LTC5584 Page 3 of LTC5584

LTC5584 Application

  • Applications n LTE/W-CDMA/TD-SCDMA Base Station Receivers n Wideband DPD Receivers n Point-To-Point Broadband Radios n High Linearity Direct Co
