LTC5582 Datasheet, Detector, Linear Technology

LTC5582 Features

  • Detector Frequency Range: 40MHz to 10GHz n Linear Dynamic Range: Up to 57dB n Accurate RMS Power Measurement of High Crest Factor Modulated Waveforms n Exceptional Accuracy Over Temperature

PDF File Details

Part number:

LTC5582

Manufacturer:

Linear Technology

File Size:

423.53kb

Download:

📄 Datasheet

Description:

40mhz to 10ghz rms power detector. The LTC®5582 is a 40MHz to 10GHz RMS responding power detector. It is capable of accurate power measurement of an AC signal with wide

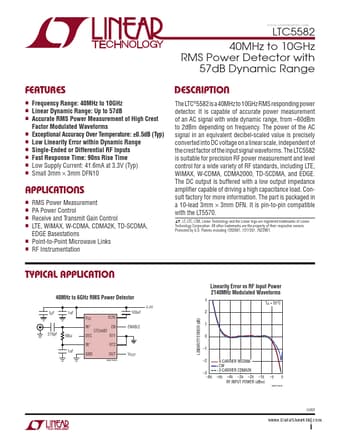

Datasheet Preview: LTC5582 📥 Download PDF (423.53kb)
Page 2 of LTC5582 Page 3 of LTC5582

LTC5582 Application

  • Applications n n n n RMS Power Measurement PA Power Control Receive and Transmit Gain Control LTE, WiMAX, W-CDMA, CDMA2K, TD-SCDMA, EDGE Base
